A comprehensive range of pulleys for all types of belt drive, using Taper Lock™ shaft fixing system for the ultimate versatility. |
 | |
| |
|
Covering sizes of pulley for Z/ SPZ, A/SPA, B/SPB, C/SPC.
Pitch diameter from 50mm to 1250mm.
Single groove to multiple of 12 grooves.
See attached *.pdf files for details.
SPZ 0050X01 TO SPZ 0630X10
SPA 0063X01 TO SPA 0800X10
SPB 0100X01 TO SPB 1250X10
SPC 0200X01 TO SPC 1250X10
8V-12.5"-4G TO 8V-53.0"-10G
D-12"-3G TO D-58"-12G | |
|
 |
|

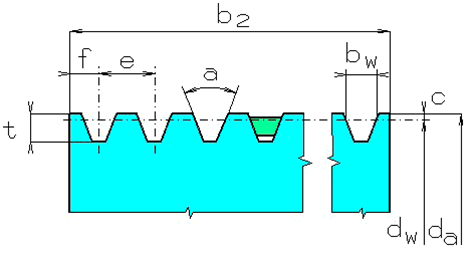

profil |
dw |
a |
bw |
t |
c |
f |
e |
|
|
mm |
° |
mm |
mm |
mm |
mm |
mm |
|
SPZ |
<80 |
34 |
8,5 |
11 |
2 |
8 |
12 |
|
|
>80 |
38 |
|
|
|
|
|
|
SPA |
<118 |
34 |
11 |
14 |
2,8 |
10 |
15 |
|
|
>118 |
38 |
|
|
|
|
|
|
SPB |
<190 |
34 |
14 |
18 |
3,5 |
12,5 |
19 |
|
|
>190 |
38 |
|
|
|
|
|
|
SPC |
<315 |
34 |
19 |
24 |
4,8 |
17 |
25,5 |
|
|
>315 |
38 |
|
|
|
|
| | | |
| |
| |
 |
|
