Ω Coupling

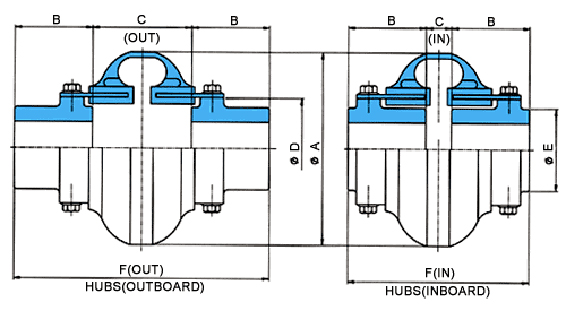

Specification & Dimension



Omega Coupling No.
HP per 100 rpm
 　
Basic Torque(kgf.cm)
Bore Dia (mm) Max
Dimensions(mm)
Max speed
A
B
C
D
E
F
(rpm)
Outer dia.
Hub Length
Spacing
Maj Hub Dia.
Min Hub Dia.
Total Length
　
(In)
(Out)
(In)
(Out)
E2
0.3
7,500
218
28
89
24
36
46
47
38
84
94
E3
0.59
7,500
421
34
102
38
8
46
59
50
84
122
E4
0.89
7,500
639
42
116
38
8
46
66
57
84
122
E5
1.51
7,500
1,080
48
137
44
9
59
80
70
97
147
E10
2.33
7,500
1,670
55
162
44
9
59
93
84
97
147
E20
3.73
6,600
2,670
60
184
50
13
65
114
102
113
165
E30
5.88
5,800
4,210
75
210
58
9
69
138
118
125
185
E40
8.85
5,000
6,340
85
241
63
9
75
168
146
135
201
E50
12
4,000
8,820
90
279
70
11
91
207
152
151
231
E60
20
3,800
14,400
105
318
82
9
97
222
165
173
261
E70
36
3,600
25,500
120
356
85
19
109
235
175
189
279
E80
62
2,000
45,500
155
406
114
17
149
286
240
245
377
E100
137
1,900
98,100
171
533
140
44
95
359
267
324
375
E120
274
1,800
196,000
190
635
152
56
106
448
305
360
411
