Specification & Dimension |
|  |
|
|

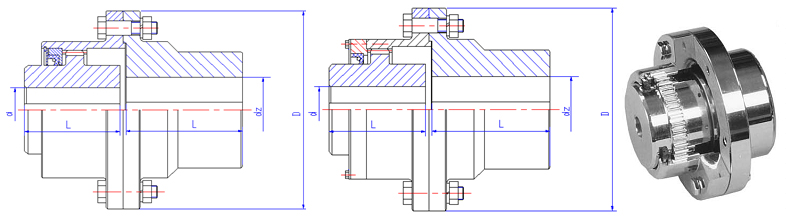

| A type B type |
|
Size |
模数 |
齿数 |
Rated Torque |
Max. Speed |
Dia. Of Hub |
Length of Hub |
D |
D1 |
D2 |
转动惯量 |
|
Tn |
{n} |
mm |
Y |
I |
|
m |
z |
N·m |
r/min |
dmin |
dmax |
L |
mm |
kg·m2 |
|
CLZ1 |
2.5 |
30 |
710 |
3780 |
18 |
60 |
42/52/62/112/142 |
170 |
110 |
55 |
0.03 |
|
CLZ2 |
2.5 |
38 |
1400 |
3000 |
30 |
70 |
82/112/142 |
185 |
125 |
70 |
0.06 |
|
CLZ3 |
3 |
40 |
3150 |
2400 |
40 |
90 |
82/112/142 |
220 |
150 |
90 |
0.12 |
|
CLZ4 |
3 |
48 |
5600 |
2000 |
45 |
100 |
112/142/172/212 |
250 |
175 |
110 |
0.22 |
|
CLZ5 |
3 |
56 |
8000 |
1680 |
50 |
120 |
112/142/172/212 |
290 |
200 |
130 |
0.44 |
|
CLZ6 |
4 |
48 |
11800 |
1500 |
60 |
130 |
142/172/212/252 |
320 |
230 |
140 |
0.75 |
|
CLZ7 |
4 |
56 |
19000 |
1270 |
65 |
150 |
142/172/212/252 |
350 |
260 |
170 |
1.25 |
|
CLZ8 |
4 |
62 |
23600 |
1140 |
80 |
170 |
172/212/252/302 |
380 |
290 |
190 |
2.06 |
|
CLZ9 |
6 |
46 |
30000 |
1000 |
90 |
190 |
172/212/252/302/352 |
430 |
330 |
210 |
2.56 |
|
CLZ10 |
6 |
56 |
50000 |
850 |
110 |
220 |
212/252/302/352 |
490 |
390 |
260 |
5 |
|
CLZ11 |
8 |
48 |
71000 |
750 |
120 |
250 |
212/252/302/352/410 |
545 |
445 |
300 |
9.25 |
|
CLZ12 |
8 |
54 |
100000 |
660 |
140 |
280 |
252/302/352/410/470 |
590 |
490 |
340 |
12.5 |
|
CLZ13 |
10 |
48 |
150000 |
600 |
160 |
300 |
302/352/410/470 |
680 |
555 |
380 |
29.9 |
|
CLZ14 |
10 |
54 |
200000 |
540 |
180 |
340 |
302/352/410/470/550 |
730 |
610 |
420 |
42.5 |
|
CLZ15 |
10 |
58 |
250000 |
480 |
200 |
380 |
352/410/470/550 |
780 |
660 |
480 |
56.9 |
|
CLZ16 |
12 |
56 |
375000 |
425 |
230 |
420 |
410/470/550/650 |
900 |
755 |
530 |
120 |
|
CLZ17 |
12 |
64 |
560000 |
380 |
260 |
480 |
410/470/550/650 |
1000 |
855 |
630 |
225 |
|
CLZ18 |
12 |
72 |
750000 |
330 |
300 |
530 |
470/550/650/800 |
1100 |
950 |
710 |
3.25 |
|
CLZ19 |
12 |
80 |
1000000 |
300 |
350 |
560 |
550/650/800 |
1250 |
1050 |
800 |
568 | |
|
| |
| |
 |
|
|
