The metering pump is a positive displacement chemical dosing device with the ability to vary capacity manually or automatically as process conditions require. It features a high level of repetitive accuracy and is capable of pumping a wide range of chemicals including acids, bases, corrosive or viscous liquids and slurries.
The pumping action is developed by a reciprocating piston which is either in direct contact with the process fluid, or is shielded from the fluid by a diaphragm. Diaphragms are actuated by hydraulic fluid between the piston and the diaphragm.
Metering pumps are generally used in applications where one or more of the following conditions exit:
Low flow rates in mL/hr or GPH are required
High system pressure exists
High accuracy feed rate is demanded
Dosing is controlled by computer, microprocessor, DCS, PLC, or flow proportioning
Corrosive, hazardous, or high temperature fluids are handled
Viscous fluids or slurries need to be pumped
Our fluid metering, transfer, and control technologies can be found in a variety of markets and applications: from chlorine injection in your home water conditioning system or swimming pool to metering heavy water from nuclear generators.
Markets Served:
Car Wash Petrochemical Ware Wash
Chemical Processing Petroleum Waste Water Treatment
Food Processing Pharmaceutical Water Conditioning
Mining Pulp & Paper Water Treatment
Paints & Dyes Utilities

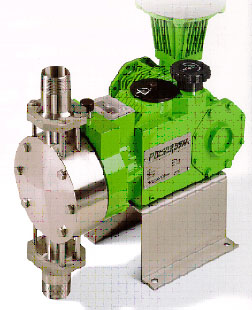

This easily primed, flow through head is a favorite for countless applications. Typical liquid end construction is 316 stainless steel with a PTFE diaphragm. The reagent head and valves are also available in alternative materials:
Alloy 20 /Alloy C /Monel /Nickel /PVC /PTFE /Polypropylene and other high alloy materials
Flow Rate: 12,500L/H
Head: 3000psi
Working Temperature: 371C
|
