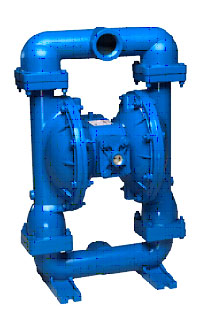

Air Operated Double Diaphragm, AODD, pumps are widely used in most types of industries for the handling of a variety of products. It is a truly multipurpose pump and the wide range of applications is the main reason for its growing popularity.

Application

AODD pumps are used or have a potential in all types of
industries such as:

• Petrochemicals
Tank cleaning, oil sludge, petroleum, benzine
• Chemicals
Acids, alkalis, suspensions, latex, solvents, electroplating baths
• Paint and Ink
• Resins and Adhesives
• Pulp & Paper
Printing inks, dispersions, pulp and paper slurries
• Pharmaceutical
Syrups, alcohol, glycerine, ointment, tablets pastes, oils

Technical Data

Material :               PP,PTFE,PVDF,Cast Iron,Al, Stainsteel
Max. inlet air Pressure: 100PSI/6.0Bar

Non-metallic:

1/2"   15GPM   57LPM
3/4"   25GPM   95LPM
1"     45GPM   170LPM
1 1/2" 90GPM   340LPM
2"     150GPM  568LPM
3"     225GPM  852LPM

Metallic

1/2"   15GPM   57LPM
1"     45GPM   170LPM
1 1/2" 106GPM  401LPM
2"     150GPM  568LPM
3"     235GPM  883LPM
